CPU

Support Intel® Core™ Ultra Processors (Series 2)*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to ASUS Support for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8600+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
• Supports DIMM Flex and DIMM FIT
• ASUS Enhanced Memory Profile III (AEMPIII)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

Graphics

• 1 x DisplayPort* (max. 8K@60Hz)
• 1 x HDMI™ port** (4K@60Hz)
• 2 x Intel® Thunderbolt™ 4 support

* Graphics specifications may vary between CPU types. Please refer to Intel for any updates.

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

• M.2_1 slot (PCIe 5.0 x4 mode)
• M.2_2 slot (PCIe 4.0 x4 mode)
• M.2_3 slot (PCIe 4.0 x4 mode)
• M.2_4 slot (PCIe 4.0 x4 mode)
• M.2_5 slot (PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7 (802.11be) 2×2
• Bluetooth® v5.4

USB Ports

Rear USB (Total 10 ports):

• 2 x Thunderbolt™ 4 ports (USB Type-C®)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD/PPD Fast-charge)
• 2 x USB 5Gbps ports (Type-A)

Front USB (Total 7 ports):

• 1 x USB 20Gbps connector (USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

Supports up to 32-Bit/384 kHz playback on front panel.

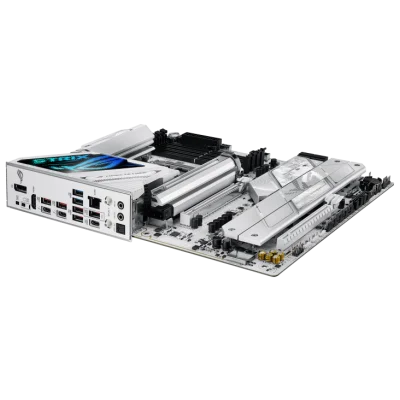

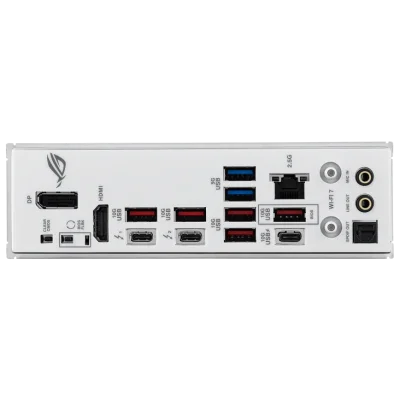

Back Panel I/O Ports

• 2 x Thunderbolt™ 4 ports (USB Type-C®)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks

Internal I/O Connectors

• 1 x 4-pin CPU Fan header
• 1 x 24-pin Main Power connector
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

Special Features

• Extreme Engine Digi+
• ASUS Q-Design
• Thermal Solution with M.2 heatsink
• Aura Sync support

Software Features

• ROG Exclusive Software
• ASUS Exclusive Software
• ASUS EZ DIY features

BIOS

256 Mb UEFI AMI BIOS

Accessories

• 2 x SATA 6Gb/s cables

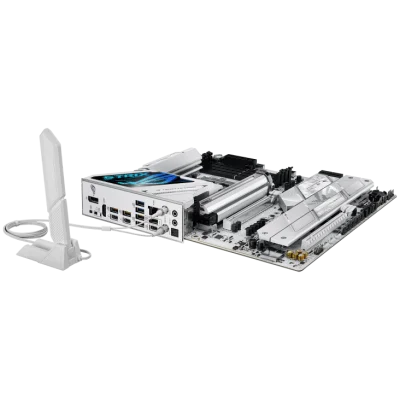

• 1 x ASUS WiFi Q-Antenna
• 1 x Quick start guide

Operating System

Windows 11 (22H2 later)

Form Factor

ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
