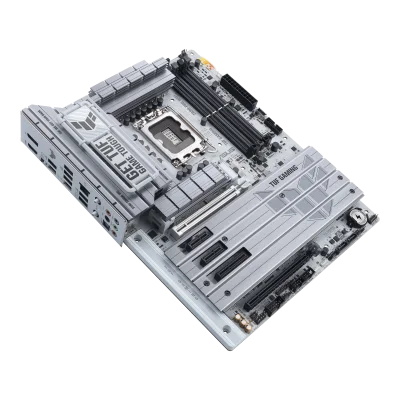

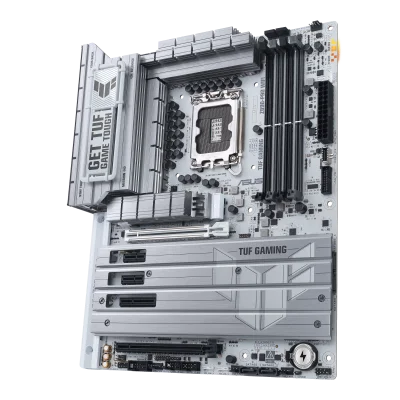

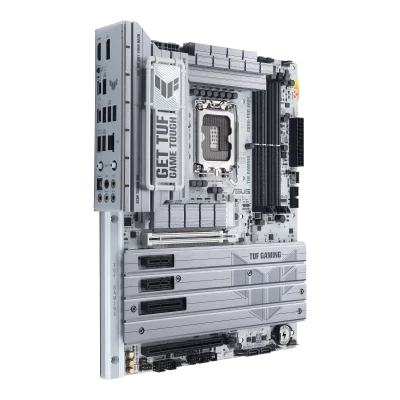

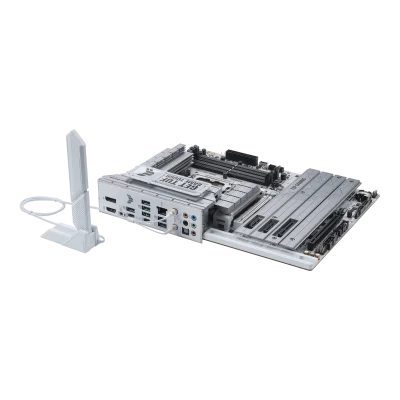

ASUS TUF GAMING Z890-PRO WIFI LGA1851 ATX Motherboard, Z890 Chipset, 4 x DIMM slots, max. 192GB, DDR5, 4 x M.2 slots and 4 x SATA 6Gb/s ports, PCIe 5.0, Wi-Fi 7 & BT | 90MB1IR0-M0EAY0
| Model | TUF GAMING Z890-PRO WIFI |
| CPU | Support Intel® Core™ Ultra Processors (Series 2), LGA1851* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to ASUS Support for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of the product information site or visit ASUS Support. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x DisplayPort** 1 x HDMI™ port*** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs**** * Graphics specifications may vary between CPU types. Please refer to Intel for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site. |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** * Wi-Fi features may vary depending on the operating system. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications. |
| USB | Rear USB (Total 8 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio amplifier to enhance the highest quality sound for headphones and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

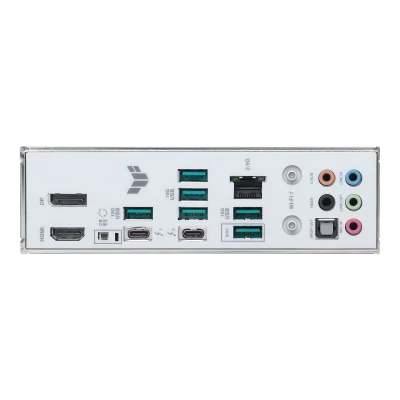

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® ports 6 x USB 10Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
| Internal I/O Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 2 headers 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers Others 1 x 10-pin RGB header 1 x 10-pin Addressable RGB header 1 x TPM header 1 x 4-pin speaker header 1 x COM header 1 x 4-pin chassis intrusion header 1 x 4-pin Power button header |
| Dimensions | 30.5 cm x 24.4 cm (12 in x 9.6 in) Form Factor: ATX |
| Weight | 2.52 kg (5.56 lb) |
| Warranty | 3 Years |
